Acculobe from Johnson Pump
Introducing the EHEDG certified Johnson Pump AccuLobe - the next generation of innovative pump solutions from Wright Flow Technologies.
Specifically designed to reduce overfill costs and eliminate troublesome maintenance tasks.
Acculobe
- All wetted parts 316L Stainless Steel
- EHEDG Certified
- Multi-lobe rotors for maximum efficiency, improved accuracy and lower pulsation
- Optimised Rotor-case profile, promotes self-draining, whilst maintaining efficiency
- Hygienic front cover joint designed for minimal product entrapment and better CIP capability
- Flush fitting Rotor Retainers for optimum hygiene and efficiency
- AccuLobe can be bulkhead fitted, foot mounted or direct coupled to an IEC or NEMA motor
- Compatible with main competitor products
- Sealed for life bearings reduce the need for routine maintenance
- One-piece Rotor-case and Gear Housing for precise alignment, enabling accurate and reliable operation
- Hygienic front-loading mechanical seals ensure ease of maintenance
Technical Data
- Displacement: 0.02 litres / revolution
- Max Flow: 35 litres / minute
- Max Pressure: 12 bar
- Max Viscosity: 150,000 cSt
- Max. Temp: 150°C
- Weight: 9.5 kgs
- IEC or NEMA Flange Mounting with Integral geared speed reduction
- All wetted parts in 316L stainless steel
Typical Applications
Acculobe with motor
- Personal Care
- Shampoos & Conditioners
- Creams & Lotions
- Pharmaceuticals
- Injectable Products
- Eye Preparations
- Creams & Lotions
- OEM & End User
- Filling Machines
- Laboratory & Pilot Plant
- Dosing & Batching
- Bio Technology
- Ultra Filtration
- Reverse Osmosis
- Food & Beverage
- Dairy
- Yogurts
- Drinks
- Fromage Frais
- Sauce Portions – Ketchup
- Industrial
- Bottle & Package Filling

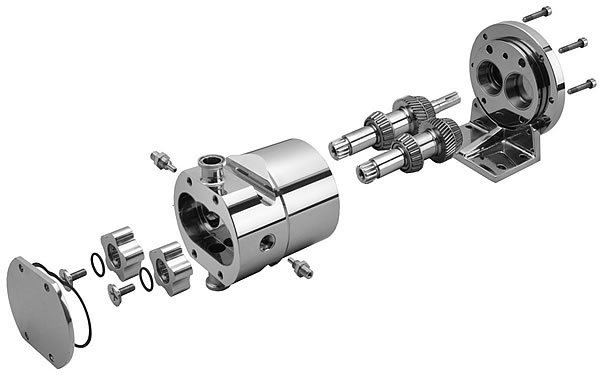

Exploded View of AccuLobe Pump
